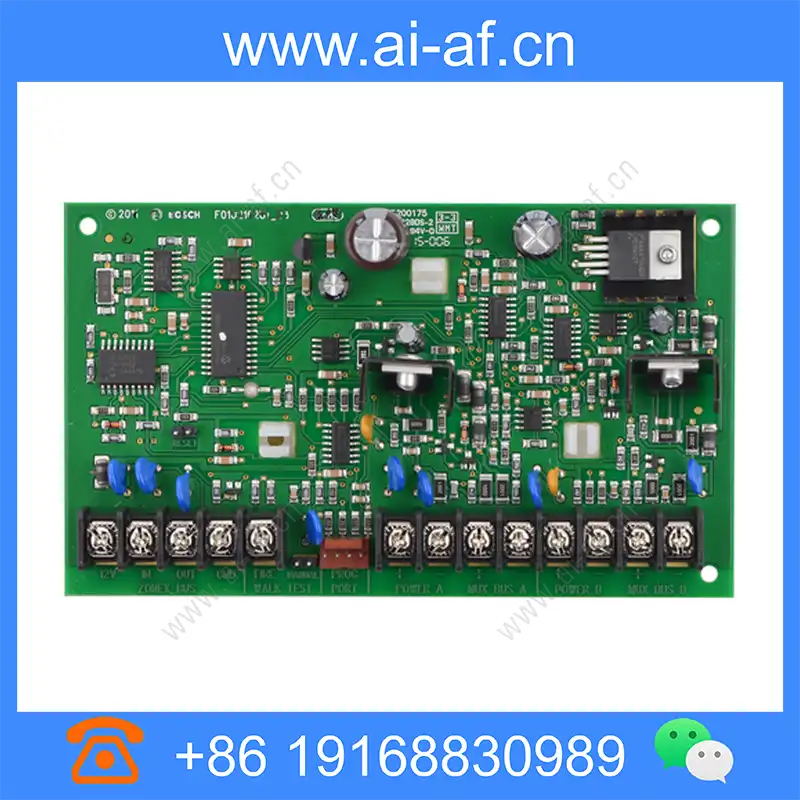

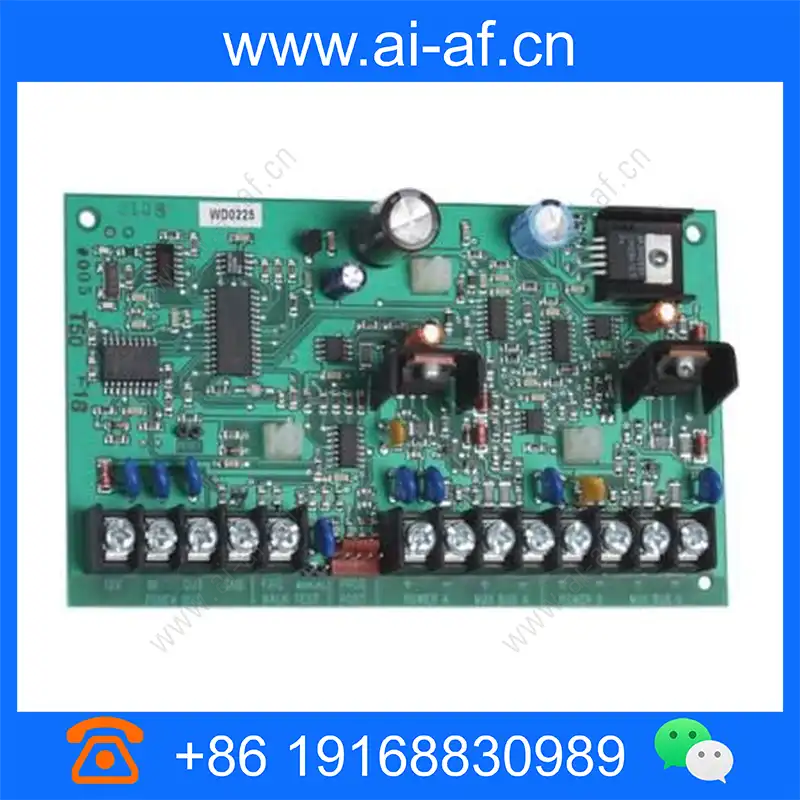

Bosch D8125MUX POPEX Expansion module Multiplex F.01U.383.283

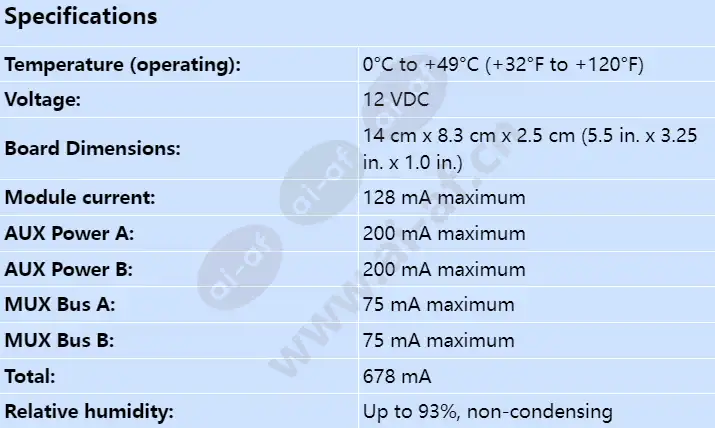

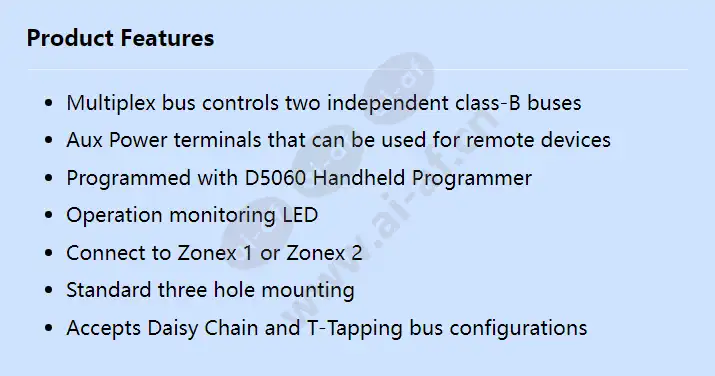

Multiplex bus controls two independent class-B buses Aux Power terminals that can be used for remote devices Programmed with D5060 Handheld Programmer Operation monitoring LED Connect to Zonex 1 or Zonex 2 Standard three hole mounting Accepts Daisy Chain and T-Tapping bus configurations Relative Humidity: Up to 93%, non-condensing Temperature (Operating): 0°C to +49°C (+32°F to +120°F) Board Dimensions: 14 cm x 8.3 cm x 2.5 cm (5.5 in. x 3.25 in. x 1.0 in.) Module current: 128 mA maximum AUX Power A: 200 mA maximum AUX Power B: 200 mA maximum MUX Bus A: 75 mA maximum MUX Bus B: 75 mA maximum Total: 678 mA Voltage: 12 VDC
