Bosch D296 Smoke detector long-range beam 24V 4.998.125.869 4998125869

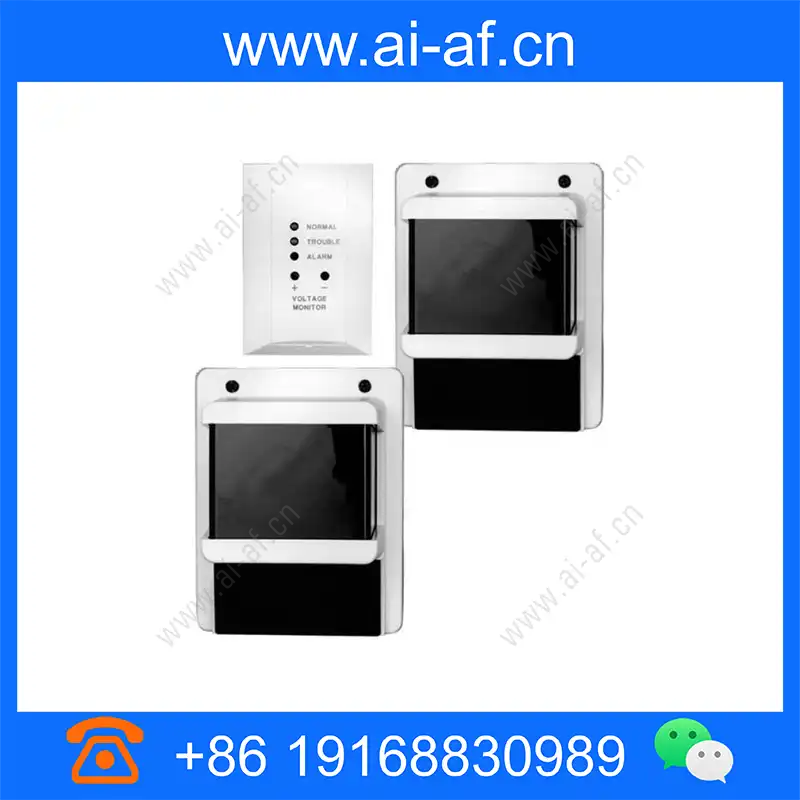

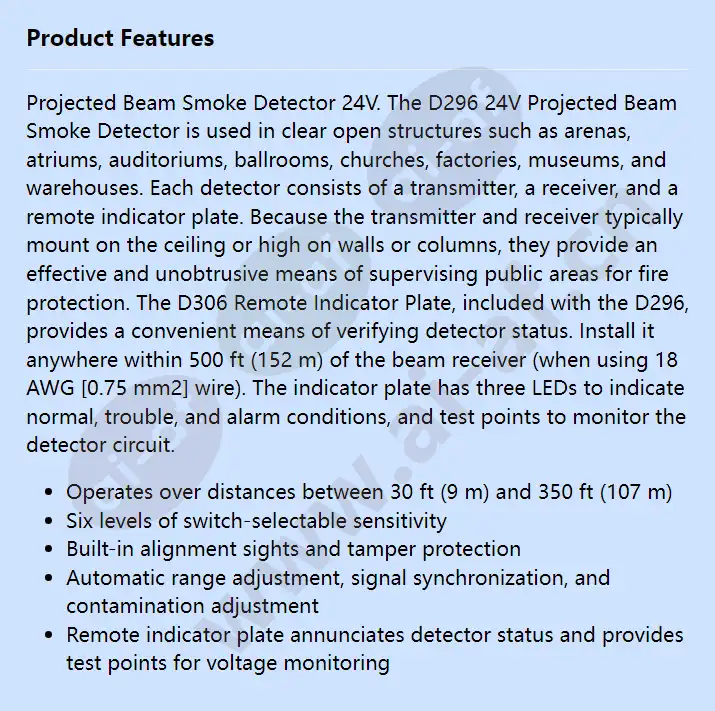

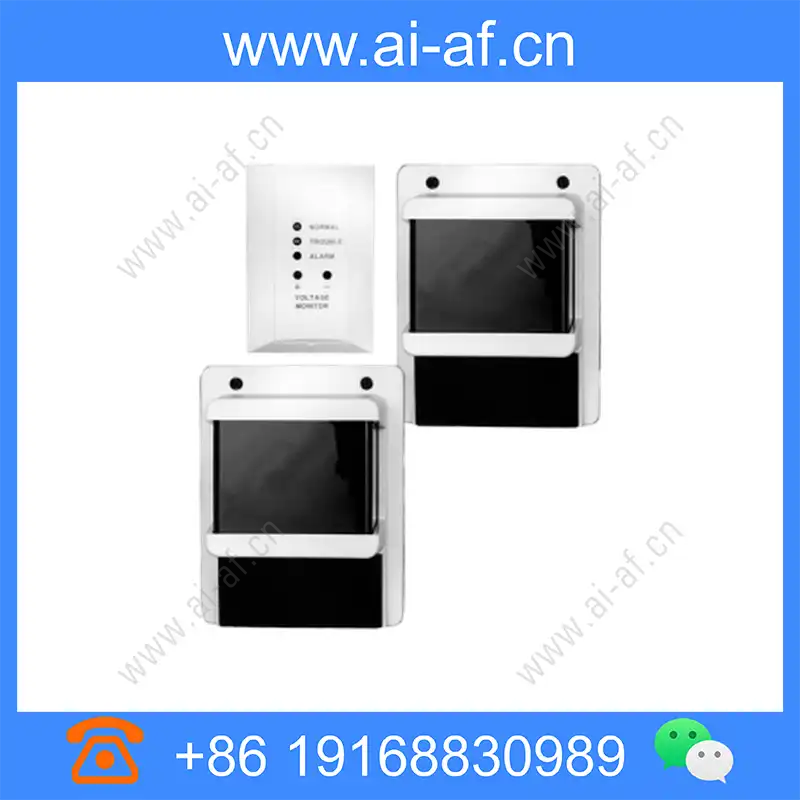

Projected Beam Smoke Detector 24V. The D296 24V Projected Beam Smoke Detector is used in clear open structures such as arenas, atriums, auditoriums, ballrooms, churches, factories, museums, and warehouses. Each detector consists of a transmitter, a receiver, and a remote indicator plate. Because the transmitter and receiver typically mount on the ceiling or high on walls or columns, they provide an effective and unobtrusive means of supervising public areas for fire protection. The D306 Remote Indicator Plate, included with the D296, provides a convenient means of verifying detector status. Install it anywhere within 500 ft (152 m) of the beam receiver (when using 18 AWG [0.75 mm2] wire). The indicator plate has three LEDs to indicate normal, trouble, and alarm conditions, and test points
