Bosch BO-AL600ULB Power Supply Board 12/24VDC 6A None

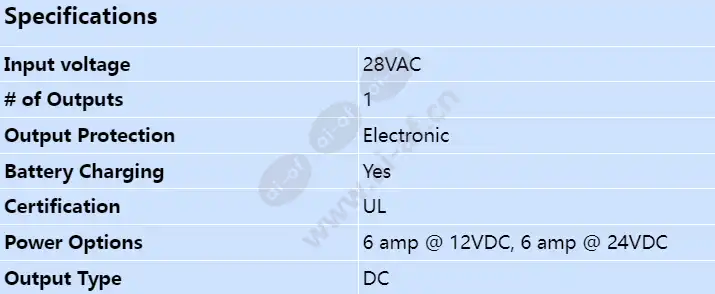

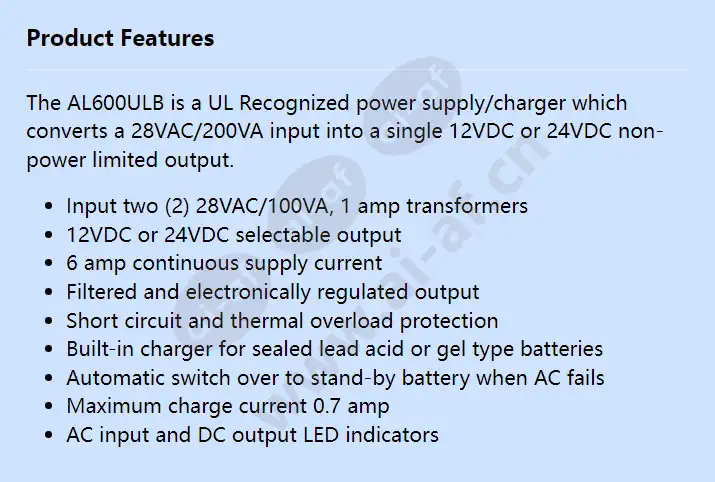

The AL600ULB is a UL Recognized power supply/charger which converts a 28VAC/200VA input into a single 12VDC or 24VDC non-power limited output. Input two (2) 28VAC/100VA, 1 amp transformers 12VDC or 24VDC selectable output 6 amp continuous supply current Filtered and electronically regulated output Short circuit and thermal overload protection Built-in charger for sealed lead acid or gel type batteries Automatic switch over to stand-by battery when AC fails Maximum charge current 0.7 amp AC input and DC output LED indicators Output Protection Electronic Input Voltage 28VAC Output Type DC Battery Charging Yes Power Options 6 amp @ 12VDC, 6 amp @ 24VDC Certifications UL Number of Outputs 1
