Bosch BCM-0000-B Battery controller module F.01U.081.384

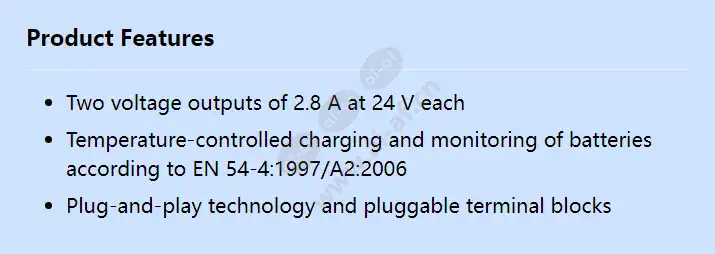

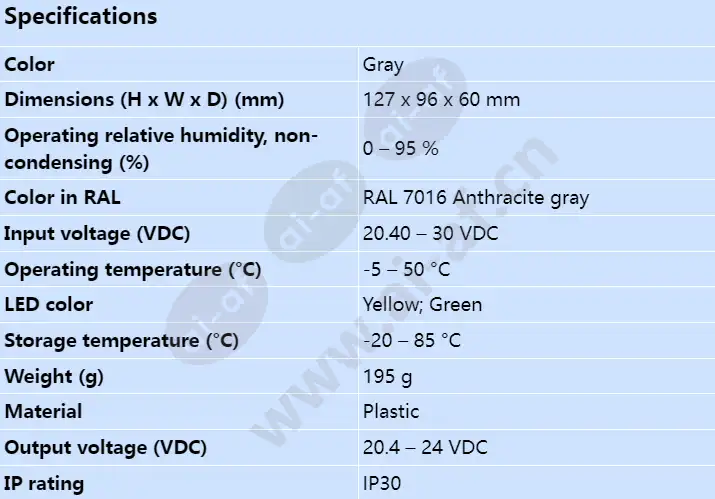

Two voltage outputs of 2.8 A at 24 V each Temperature-controlled charging and monitoring of batteries according to EN 54-4:1997/A2:2006 Plug-and-play technology and pluggable terminal blocks Color Gray Color in RAL RAL 7016 Anthracite gray Dimensions (H x W x D) (mm) 127 x 96 x 60 mm Input voltage (VDC) 20.40 – 30 VDC IP rating IP30 LED color Yellow; Green Material Plastic Operating relative humidity, non-condensing (%) 0 – 95 % Operating temperature (°C) -5 – 50 °C Output voltage (VDC) 20.4 – 24 VDC Storage temperature (°C) -20 – 85 °C Weight (g) 195 g
