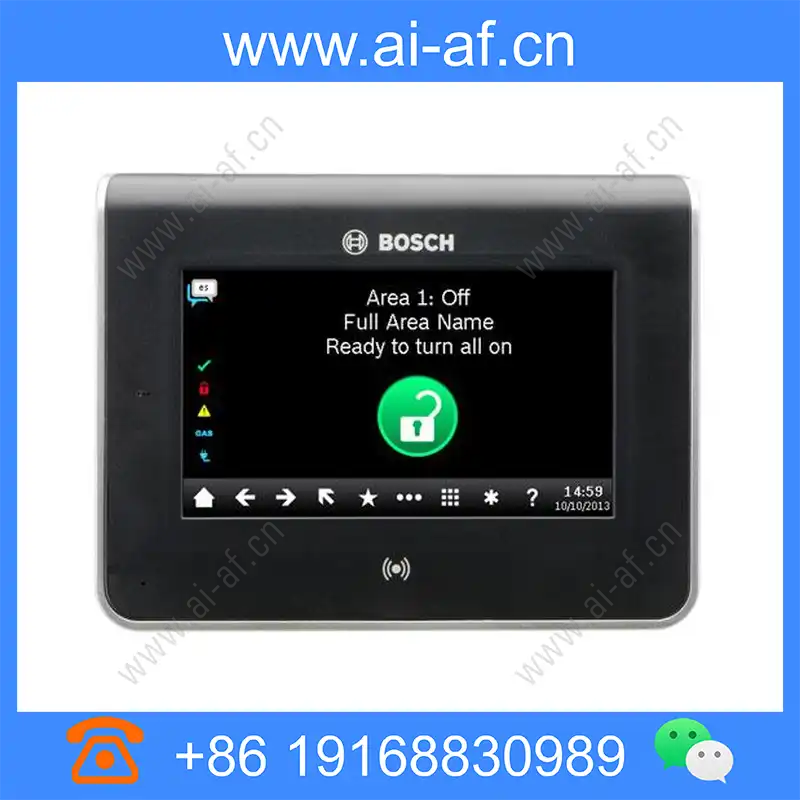

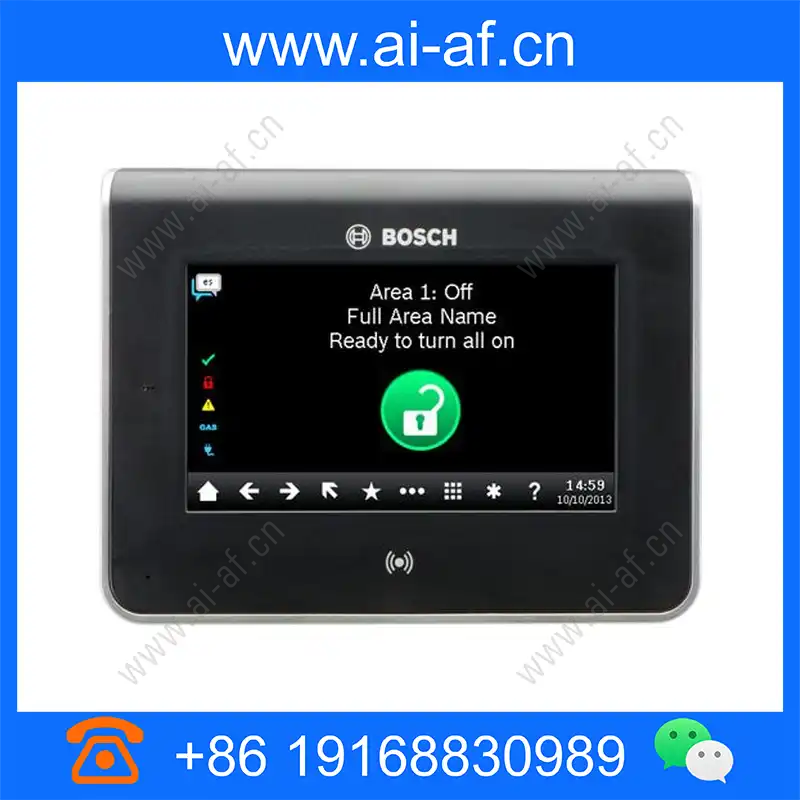

Bosch B942 B942 Touch Screen Keypad Touch Screen KP Prox/Input/Output black F.01U.323.788

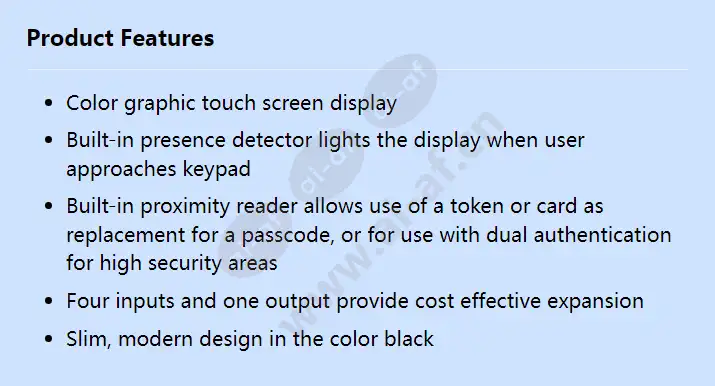

Color graphic touch screen display Built-in presence detector lights the display when user approaches keypad Built-in proximity reader allows use of a token or card as replacement for a passcode, or for use with dual authentication for high security areas Four inputs and one output provide cost effective expansion Slim, modern design in the color black Color Black Current consumption (mA) 200 – 400 mA Dimensions (H x W x D) (mm) 158 x 120 x 16.50 mm Material Plastic (ABS) Nominal voltage (VDC) 12 VDC Number of inputs 4 Number of outputs 1 Operating relative humidity, non-condensing (%) 5 – 93 % Operating temperature (°C) 0 – 50 °C Usage Indoor Weight (kg) 0.32 kg Wire size (AWG) 18 AWG
