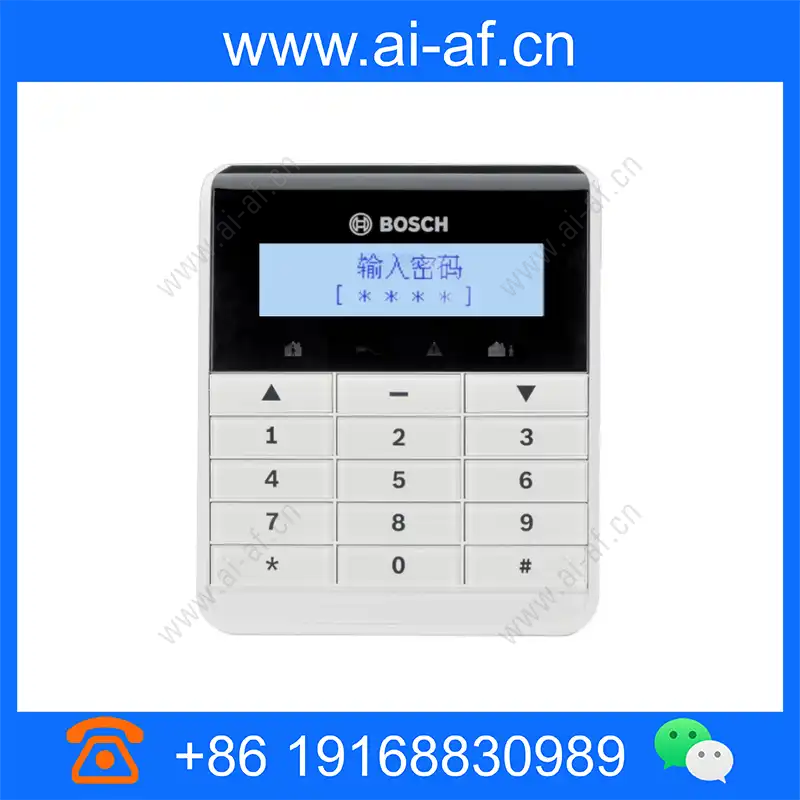

Bosch B915I-CHI Basic Keypads F.01U.385.670

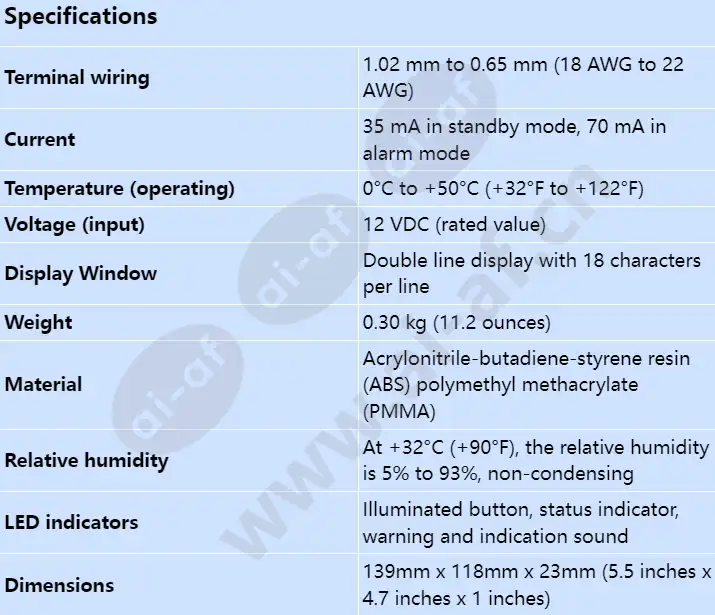

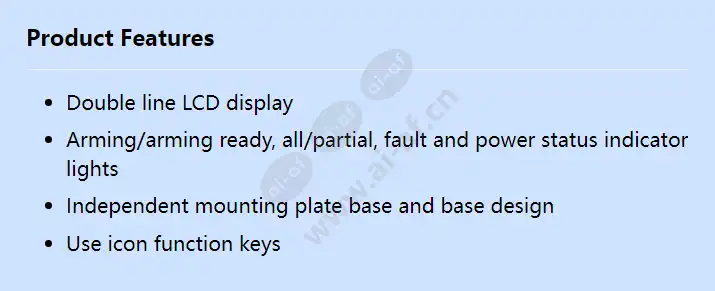

Double line LCD display Arming/arming ready, all/partial, fault and power status indicator lights Independent mounting plate base and base design Use icon function keys Terminal wiring 1.02 mm to 0.65 mm (18 AWG to 22 AWG) Relative Humidity At +32°C (+90°F), the relative humidity is 5% to 93%, non-condensing Temperature (operating) 0°C to +50°C (+32°F to +122°F) Size 139mm x 118mm x 23mm (5.5 inches x 4.7 inches x 1 inches) Weight 0.30 kg (11.2 ounces) Materials Acrylonitrile-butadiene-styrene resin (ABS) polymethyl methacrylate (PMMA) Display Window Double line display with 18 characters per line Indicator lights Illuminated button, status indicator, warning and indication sound Current 35 mA in standby mode, 70 mA in alarm mode Voltage (input) 12 VDC (rated value)
