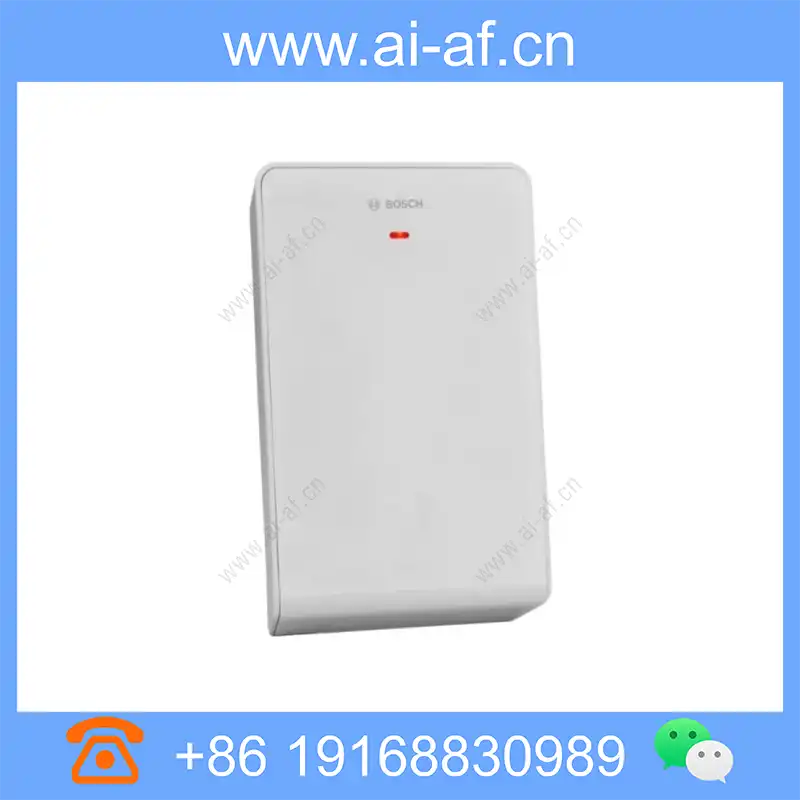

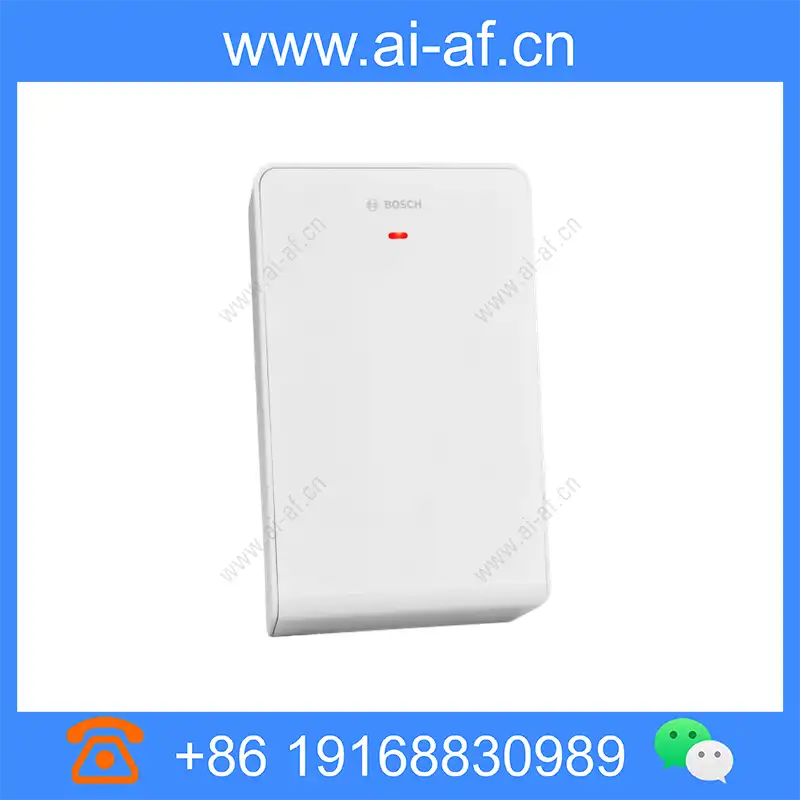

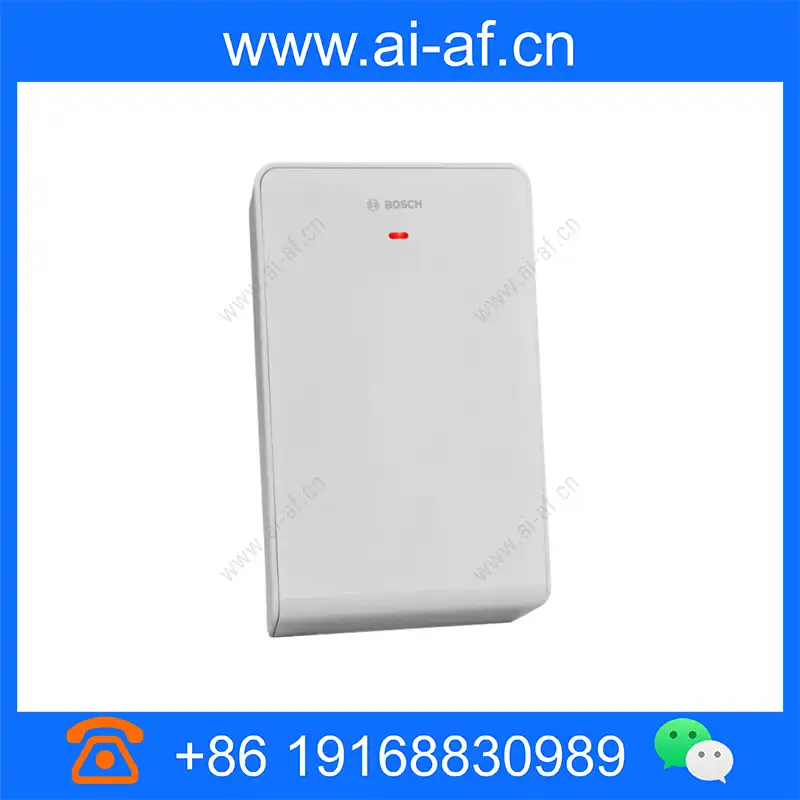

Bosch B810 RADION receiver SD Wireless SDI2 bus interface F.01U.383.394

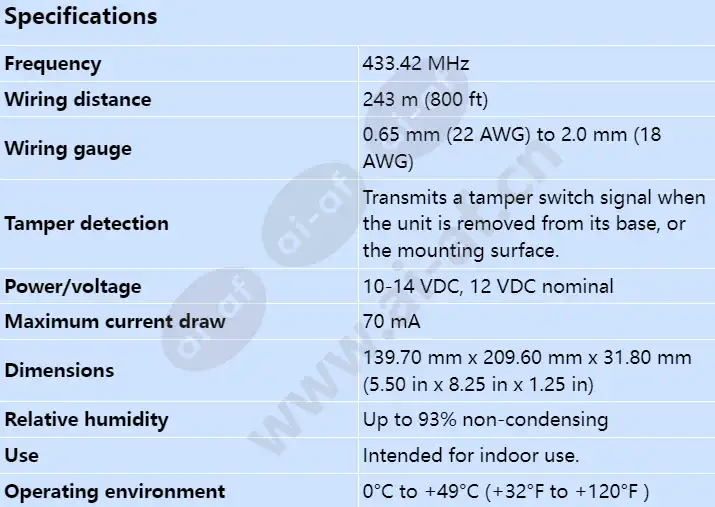

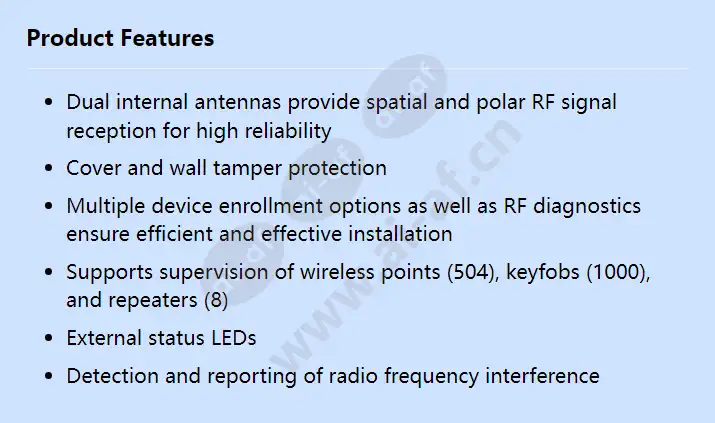

Dual internal antennas provide spatial and polar RF signal reception for high reliability Cover and wall tamper protection Multiple device enrollment options as well as RF diagnostics ensure efficient and effective installation Supports supervision of wireless points (504), keyfobs (1000), and repeaters (8) External status LEDs Detection and reporting of radio frequency interference Dimensions 139.70 mm x 209.60 mm x 31.80 mm (5.50 in x 8.25 in x 1.25 in) Wiring distance 243 m (800 ft) Wiring gauge 0.65 mm (22 AWG) to 2.0 mm (18 AWG) Tamper detection Transmits a tamper switch signal when the unit is removed from its base, or the mounting surface. Power/voltage 10-14 VDC, 12 VDC nominal Maximum current draw 70 mA Frequency 433.42 MHz Operating Environment 0°C to +49°C (+32°F to +120°F )
