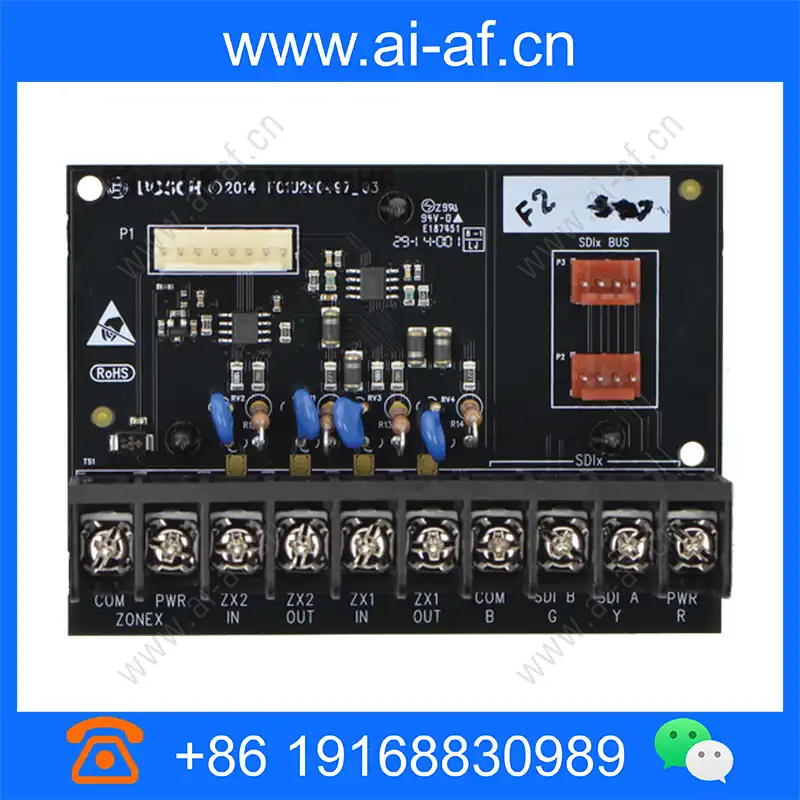

Bosch B600 ZONEX retrofit module F.01U.383.383

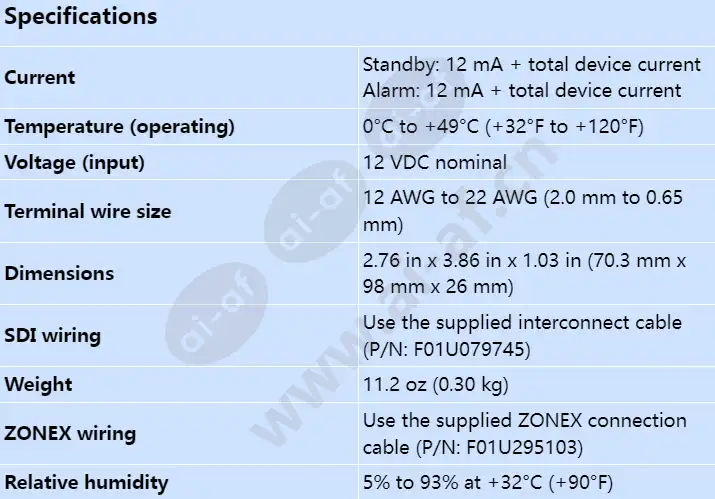

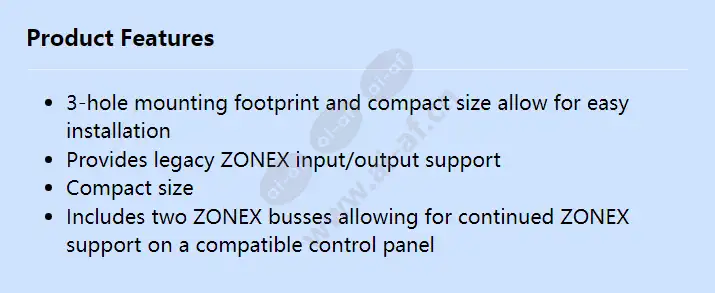

3-hole mounting footprint and compact size allow for easy installation Provides legacy ZONEX input/output support Compact size Includes two ZONEX busses allowing for continued ZONEX support on a compatible control panel Dimensions 2.76 in x 3.86 in x 1.03 in (70.3 mm x 98 mm x 26 mm) Weight 11.2 oz (0.30 kg) Relative humidity 5% to 93% at +32°C (+90°F) Temperature (operating) 0°C to +49°C (+32°F to +120°F) Current Standby: 12 mA + total device current Alarm: 12 mA + total device current Voltage (input) 12 VDC nominal Terminal wire size 12 AWG to 22 AWG (2.0 mm to 0.65 mm) SDI wiring Use the supplied interconnect cable (P/N: F01U079745) ZONEX wiring Use the supplied ZONEX connection cable (P/N: F01U295103)
