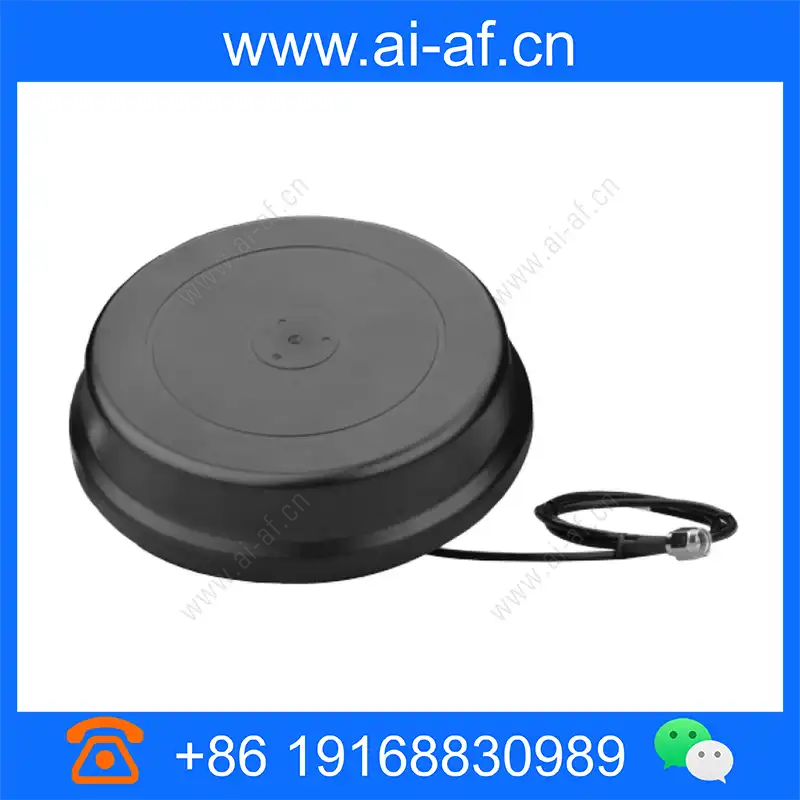

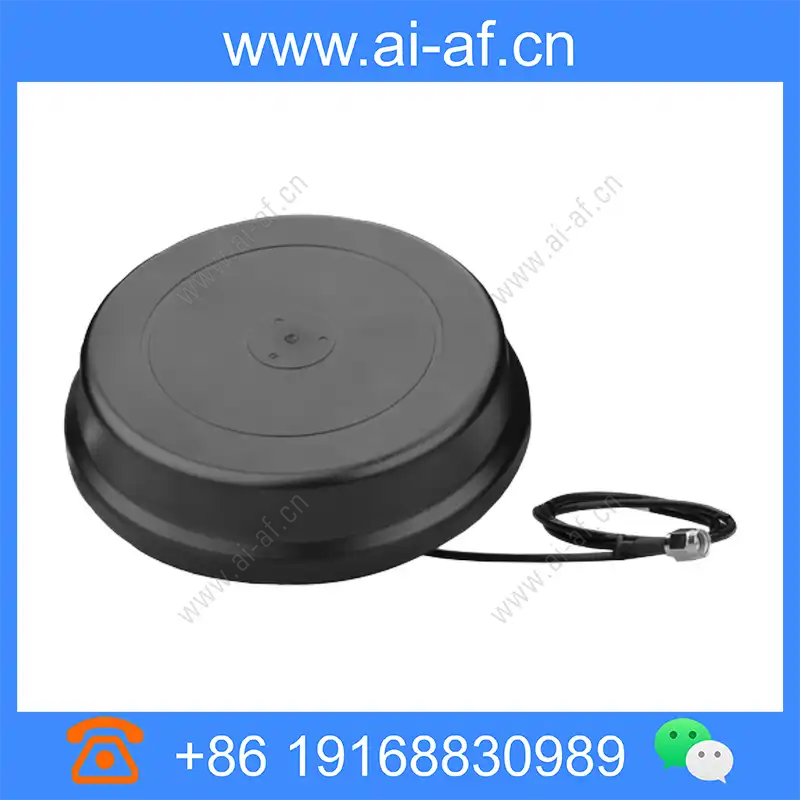

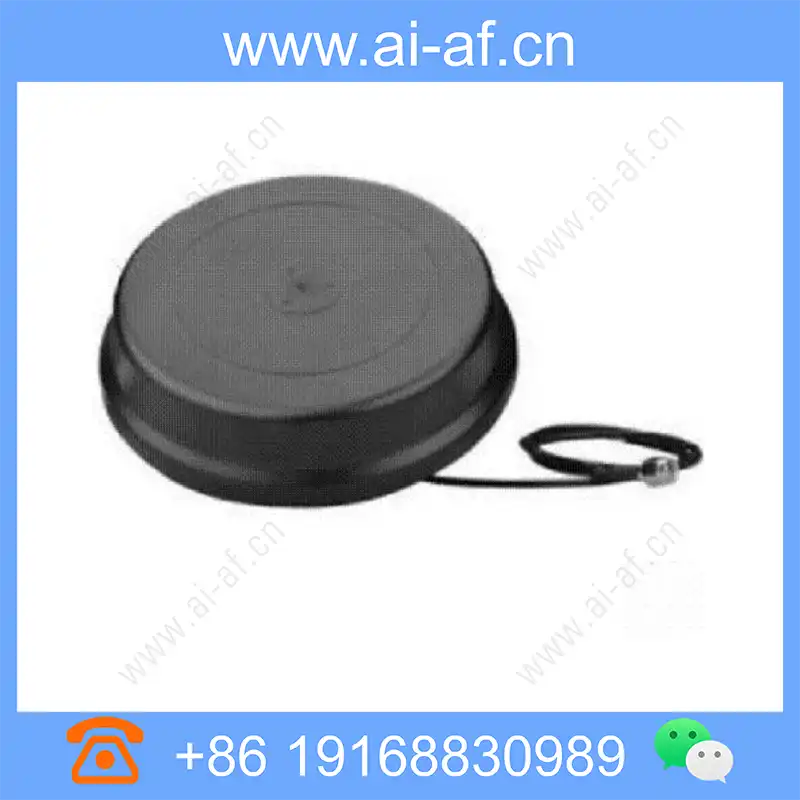

Bosch B40-P B40 Antennas Outdoor puck antenna cell 6.5ft F.01U.326.561

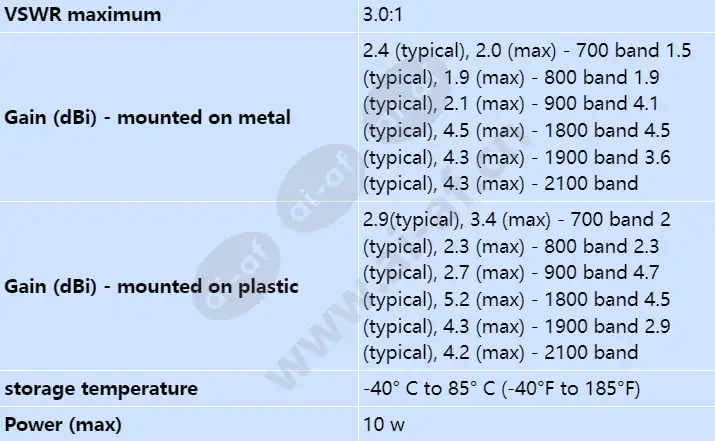

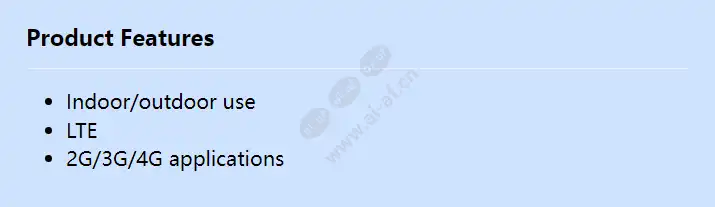

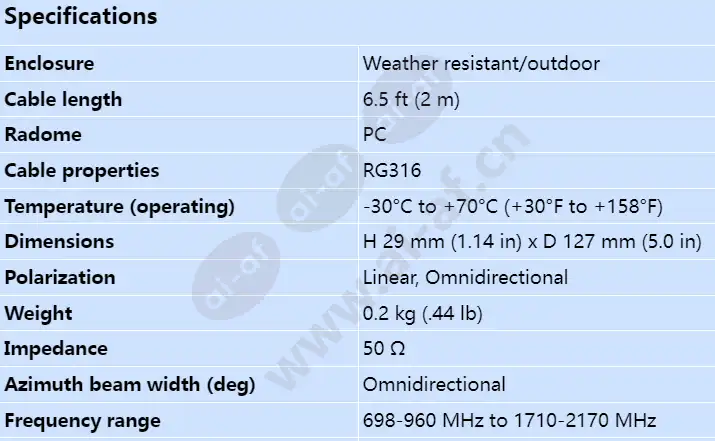

Indoor/outdoor use LTE 2G/3G/4G applications Dimensions H 29 mm (1.14 in) x D 127 mm (5.0 in) Weight 0.2 kg (.44 lb) Enclosure Weather resistant/outdoor Radome PC Cable properties RG316 Cable length 6.5 ft (2 m) Temperature (operating) -30°C to +70°C (+30°F to +158°F) Storage temperature -40° C to 85° C (-40°F to 185°F) Frequency range 698-960 MHz to 1710-2170 MHz Polarization Linear, Omnidirectional Azimuth beam width (deg) Omnidirectional Impedance 50 Ω Power (maximum) 10 w VSWR maximum 3.0:1 Gain (dBi) - mounted on metal 2.4 (typical), 2.0 (max) - 700 band 1.5 (typical), 1.9 (max) - 800 band 1.9 (typical), 2.1 (max) - 900 band 4.1 (typical), 4.5 (max) - 1800 band 4.5 (typical), 4.3 (max) - 1900 band 3.6 (typical), 4.3 (max) - 2100 band Gain (dBi) - mounted on plastic 2.9(typical), 3.4
