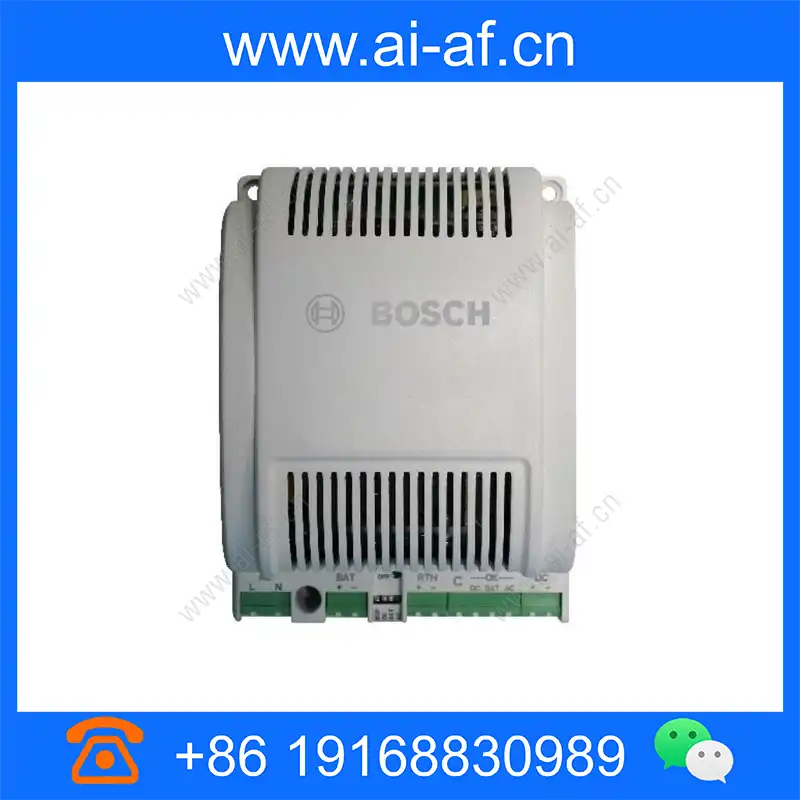

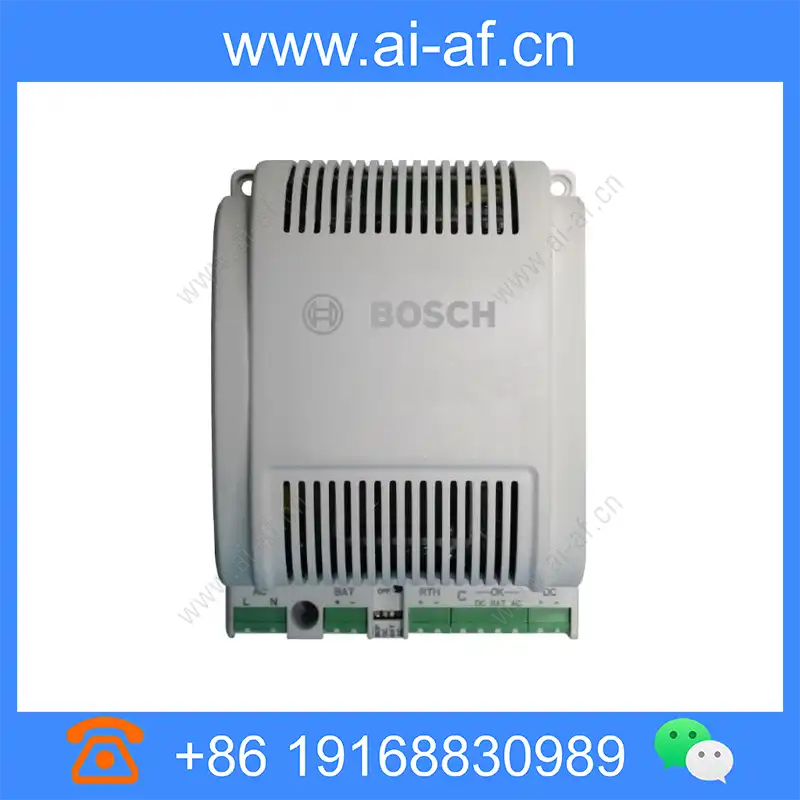

Bosch APS-PSU-60 Access Modular Controller 2 Power supply unit F.01U.282.970

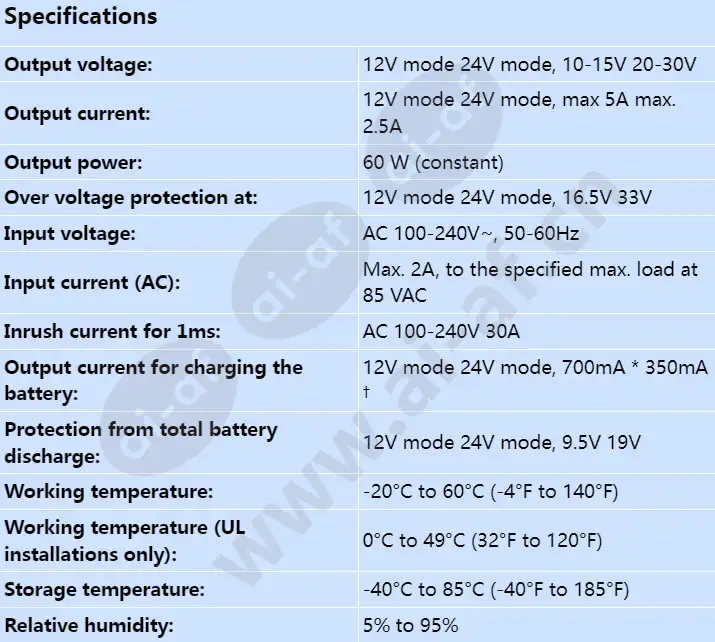

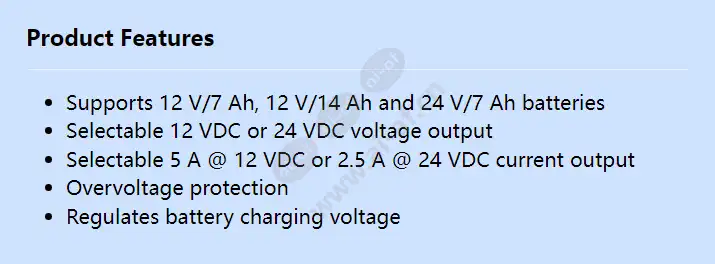

Supports 12 V/7 Ah, 12 V/14 Ah and 24 V/7 Ah batteries Selectable 12 VDC or 24 VDC voltage output Selectable 5 A @ 12 VDC or 2.5 A @ 24 VDC current output Overvoltage protection Regulates battery charging voltage Output voltage: 12V mode 24V mode, 10-15V 20-30V Output current: 12V mode 24V mode, max 5A max. 2.5A Output power: 60 W (constant) Over voltage protection at: 12V mode 24V mode, 16.5V 33V Input voltage: AC 100-240V~, 50-60Hz Input current (AC): Max. 2A, to the specified max. load at 85 VAC Inrush current for 1ms: AC 100-240V 30A Output current for charging the battery: 12V mode 24V mode, 700mA * 350mA † Protection from total battery discharge: 12V mode 24V mode, 9.5V 19V Working temperature: -20°C to 60°C (-4°F to 140°F) Working temperature (UL installations only): 0°C to 49°C
