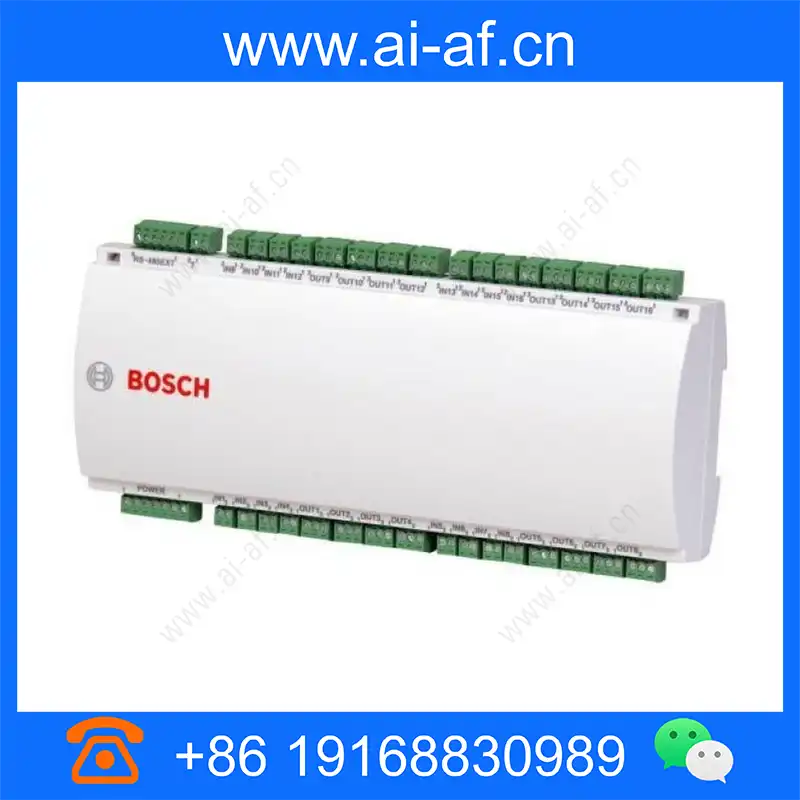

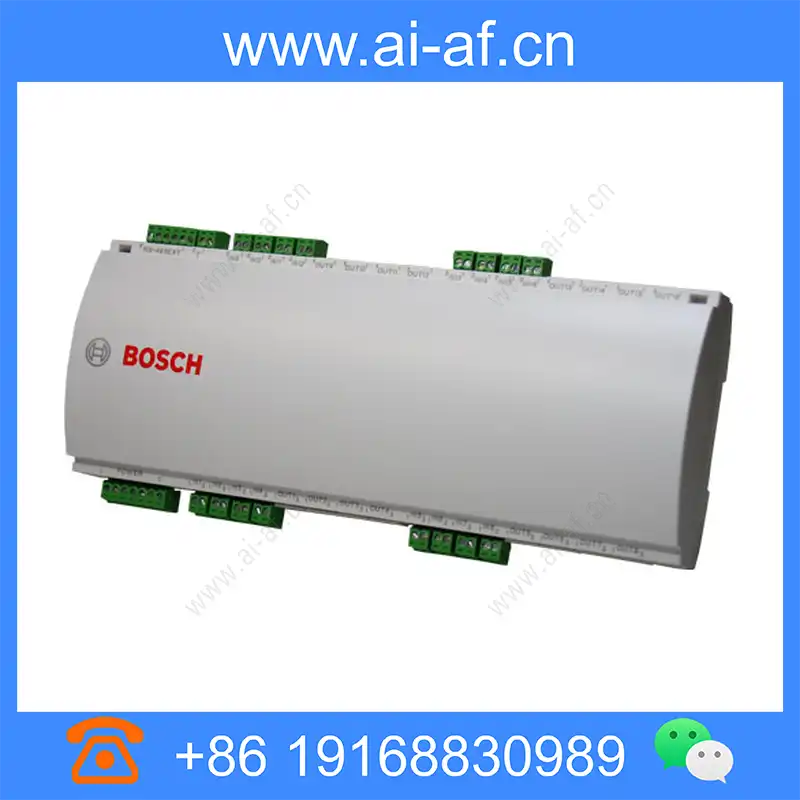

Bosch API-AMC2-16IE AMC2 Input/Output Extension Boards Extention board with 16-input F.01U.045.514

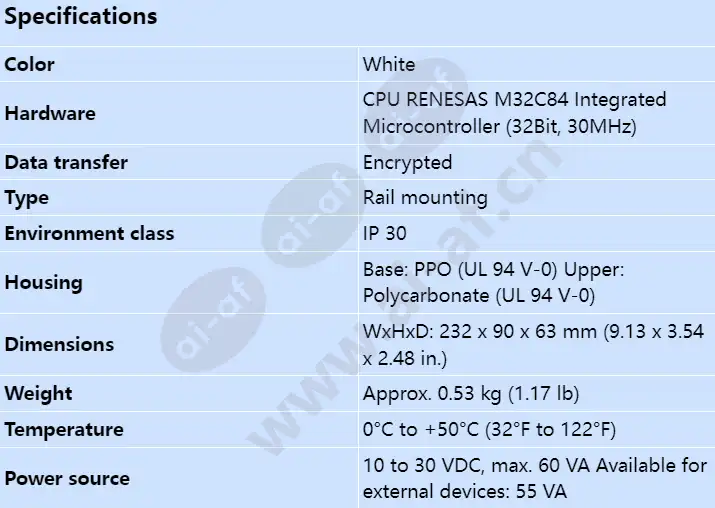

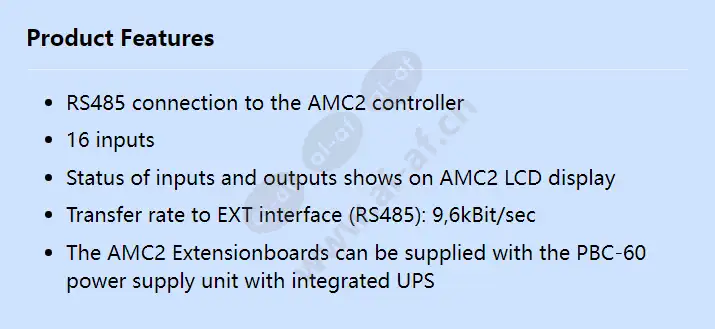

RS485 connection to the AMC2 controller 16 inputs Status of inputs and outputs shows on AMC2 LCD display Transfer rate to EXT interface (RS485): 9,6kBit/sec The AMC2 Extensionboards can be supplied with the PBC-60 power supply unit with integrated UPS Hardware CPU RENESAS M32C84 Integrated Microcontroller (32Bit, 30MHz) Data transfer Encrypted Temperature 0°C to +50°C (32°F to 122°F) Power supply 10 to 30 VDC, max. 60 VA Available for external devices: 55 VA Environment class IP 30 Housing Base: PPO (UL 94 V-0) Upper: Polycarbonate (UL 94 V-0) Color White Dimensions WxHxD: 232 x 90 x 63 mm (9.13 x 3.54 x 2.48 in.) Weight Approx. 0.53 kg (1.17 lb) Type Rail mounting
