Bosch ALTV2416ULX3 POWER SUPPLY 16 CHANNEL 120VAC INPUT 24-28VAC OUTPUT 7 A TOTAL OUTPUT F.01U.025.527

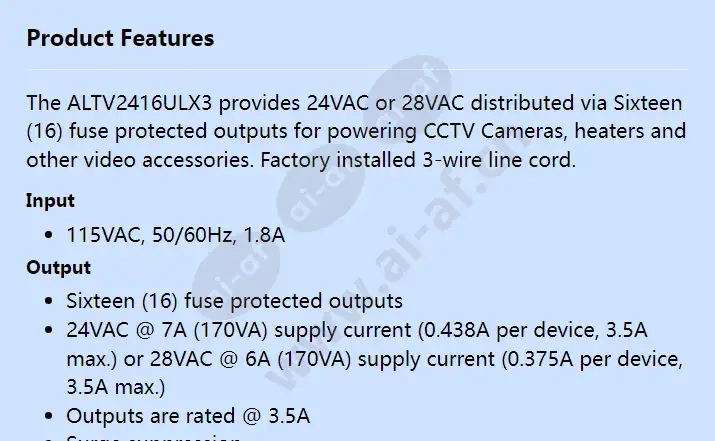

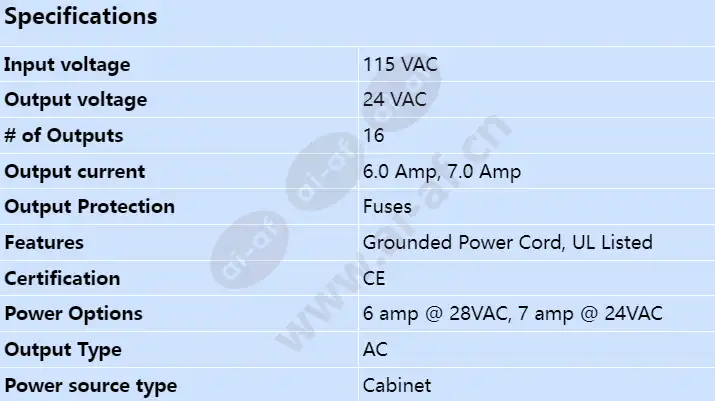

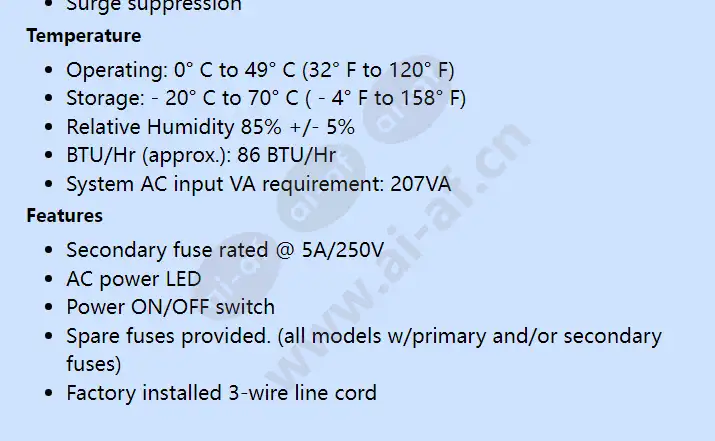

The ALTV2416ULX3 provides 24VAC or 28VAC distributed via Sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories. Factory installed 3-wire line cord. Input 115VAC, 50/60Hz, 1.8A Output Sixteen (16) fuse protected outputs 24VAC @ 7A (170VA) supply current (0.438A per device, 3.5A max.) or 28VAC @ 6A (170VA) supply current (0.375A per device, 3.5A max.) Outputs are rated @ 3.5A Surge suppression Temperature Operating: 0° C to 49° C (32° F to 120° F) Storage: - 20° C to 70° C ( - 4° F to 158° F) Relative Humidity 85% +/- 5% BTU/Hr (approx.): 86 BTU/Hr System AC input VA requirement: 207VA Features Secondary fuse rated @ 5A/250V AC power LED Power ON/OFF switch Spare fuses provided. (all models w/primary and/or secondary fuses) Factory installed
