AXIS Power supply DIN PS24 480 W 01677-001

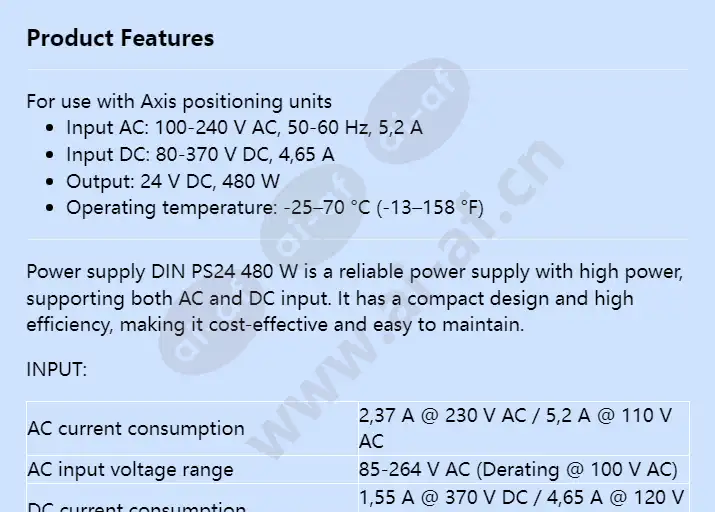

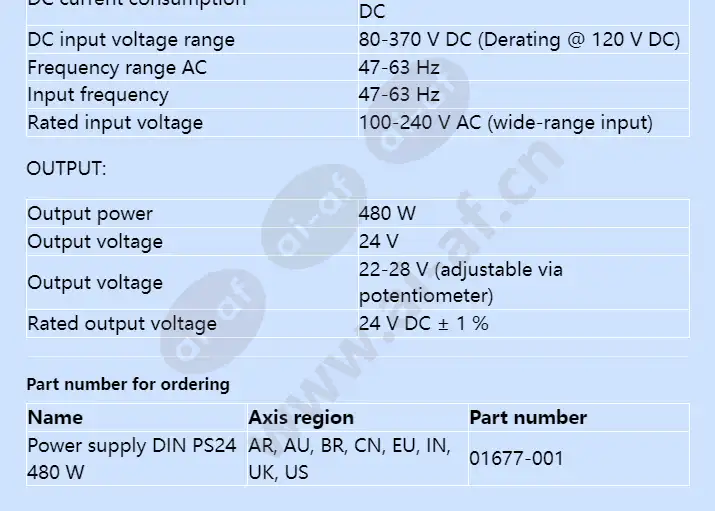

For use with Axis positioning units Input AC: 100-240 V AC, 50-60 Hz, 5,2 A Input DC: 80-370 V DC, 4,65 A Output: 24 V DC, 480 W Operating temperature: -25–70 °C (-13–158 °F) Power supply DIN PS24 480 W is a reliable power supply with high power, supporting both AC and DC input. It has a compact design and high efficiency, making it cost-effective and easy to maintain. INPUT: AC current consumption 2,37 A @ 230 V AC / 5,2 A @ 110 V AC AC input voltage range 85-264 V AC (Derating @ 100 V AC) DC current consumption 1,55 A @ 370 V DC / 4,65 A @ 120 V DC DC input voltage range 80-370 V DC (Derating @ 120 V DC) Frequency range AC 47-63 Hz Input frequency 47-63 Hz Rated input voltage 100-240 V AC (wide-range input) OUTPUT: Output power 480 W Output voltage 24 V Output voltage 22-28 V
