AXIS Device Microphone B 01963-001

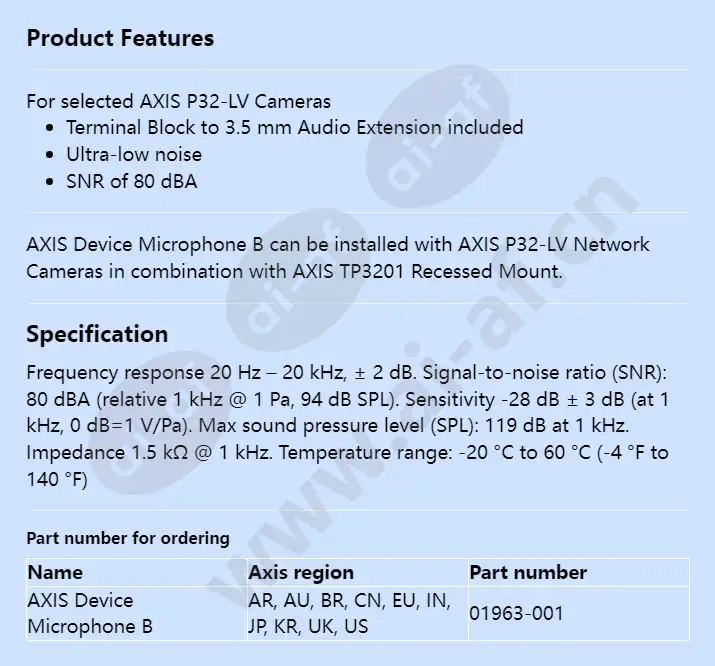

For selected AXIS P32-LV Cameras Terminal Block to 3.5 mm Audio Extension included Ultra-low noise SNR of 80 dBA AXIS Device Microphone B can be installed with AXIS P32-LV Network Cameras in combination with AXIS TP3201 Recessed Mount. Specification Frequency response 20 Hz – 20 kHz, ± 2 dB. Signal-to-noise ratio (SNR): 80 dBA (relative 1 kHz @ 1 Pa, 94 dB SPL). Sensitivity -28 dB ± 3 dB (at 1 kHz, 0 dB=1 V/Pa). Max sound pressure level (SPL): 119 dB at 1 kHz. Impedance 1.5 kΩ @ 1 kHz. Temperature range: -20 °C to 60 °C (-4 °F to 140 °F) Part number for ordering Name Axis region Part number AXIS Device Microphone B AR, AU, BR, CN, EU, IN, JP, KR, UK, US 01963-001 Audio/IO Microphone
